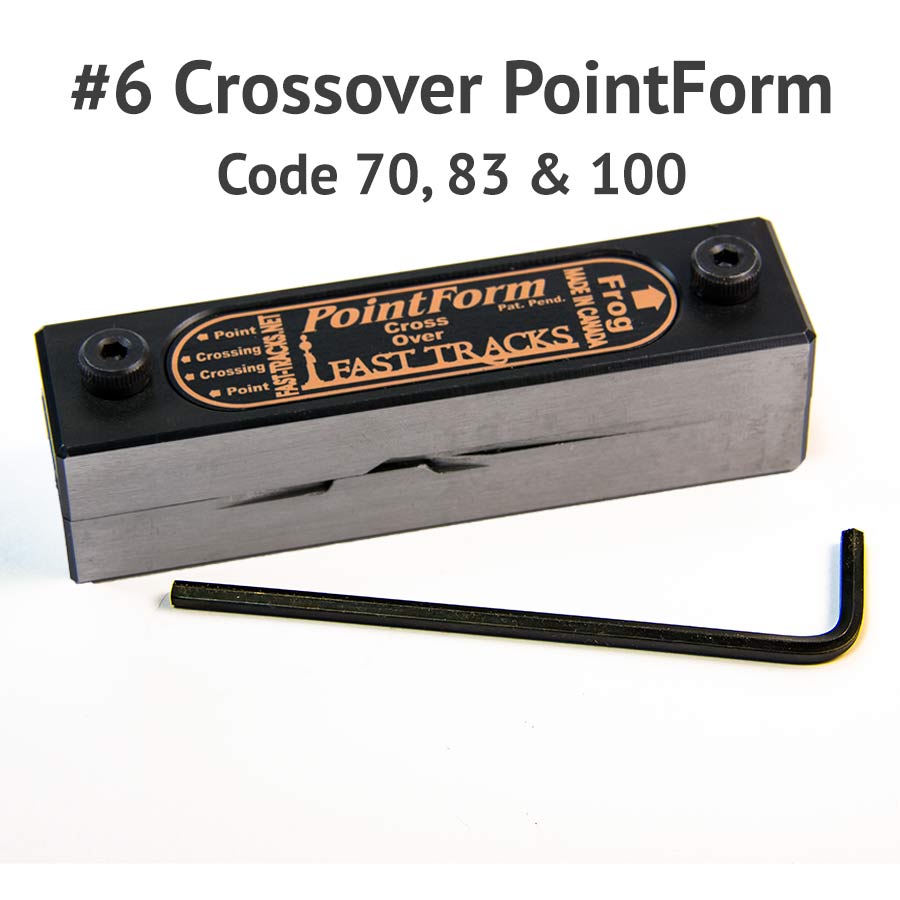

#6 Crossover PointForm for Code 70, 83 & 100 Rail

PF-6-M-X
Slide

5 In Stock

Additional Stock: 1 to 3 weeks

We can ship the PF-6-M-X immediately. If you order more than what we have available, we will hold your order until we have enough stock to ship your complete order.

PRICE : $66.95

5 in stock

Now anyone can build virtually perfect, #6 frog and switch points for crossovers simply and easily – Guaranteed!

With the Fast Tracks PointForm filing jig modelers of all skill levels can construct realistic looking, better performing frog or switch points that can reduce derailments and add a professional look and feel to any layout.

The PointForm works by holding the rail at a precise angle so that points can be filed. Its use is simple, slide the rail into the end marked “Point” to form switch points, or into the end marked “Frog” to form frog points. Tighten the cap screws using the supplied 5/32″ Allan wrench and file the rail flush with the edge of the tool and you are done!

Get perfect results every time!

In addition to a groove for the primary frog, Crossover PointForms have an additional groove that holds the rail at the correct angle for the secondary frog. Frog points that are formed with the PointForm tool will produce two symmetrical halves of the frogs, making placement of the points into a Fast Tracks assembly fixture very easy; simply slide the two rails forward in the grooves until they meet.

Two symmetrical halves of a frog point
Two symmetrical halves of a frog point produced in a PointForm tool

Points constructed with the PointForm tool are ideally suited for constructing points for Fast Tracks constructed trackwork, but can also be used for hand laid trackwork built without a Fast Tracks assembly fixture.

This PointForm filing tool can be used to construct frog and switch points for #6 switches using Code 70, 83 & 100 rail and will work with all scales and gauges up to O. Each PointForm filing jig comes complete with a 5/32″ Allen wrench for tightening the clamping screws and will last for thousands of uses.

1 review for #6 Crossover PointForm for Code 70, 83 & 100 Rail

  1. 5 out of 5

    John Crellin (verified owner)

    If you are building both turnouts and crossovers of the same frog number…. make sure you buy this item… you can build both turnouts AND crossovers so there is no need for the b9th a crossover point form and turnout point form… it is fantastic…. so accurate… my double crossover came out right the first try!!

Add a review
PARAMETERVALUEDETAILS
Switch Size6This turnout size that the PointForm will work with.
Works with Rail Codes70, 83 & 100
Secondary Frog Angle19°The second frog angle.
Switchpoint AngleThe angle between the straight and diverging route at the switchpoint.
Diverging Route Angle9.46 (Decimal)
9°/27'/36"(D/M/S)
1:6 (Ratio)
Decimal = Frog angle in decimal degrees
D/M/S = Deg/Min/Sec
Ratio = Frog angle expressed as a ratio
SizeL - 4" (102 mm)
W - 1.18" (30 mm)
H - 1" (25 mm)
The physical size of the product
Weight1.056 lbs (0.479 kg)
MaterialBlackened Cold Rolled Steel
Building Turnouts Using Fast Tracks Assembly Fixtures

This fully illustrated document provides complete details for building switches using Fast Tracks tools & supplies. These instructions apply to Turnouts, Wyes & Curved Turnouts in all scales and include essential information for building any fixture-built trackwork.

Building A Turnout Switch Using Fast Tracks Tools

Step-by-step videos demonstrate how to build a complete switch using a Fast Tracks assembly fixture, PointForm, StockAid, and other tools.

Using The Fast Tracks PointForm Tool To Build Switchpoints

The PointForm tool is not only used to file Frog points. It can also be used to file perfect switch points as well. Here is how it works.

Using The Fast Tracks PointForm Tool To Build Frogpoints

Building highly accurate frogpoints is made fast and simple with the Fast Tracks PointForm tool. Here is a detailed demonstration showing you how it works.

Using The StockAid Tool To File The Base Of The Stockrail

Video demonstration on using the StockAid tool to remove the base of the stockrail.

Fast Tracks Video Channel

Visit our growing collection of track building demonstration videos

Fast Tracks Knowledge Base

In addition to an extensive Q&A section, we also offer a full library of track building documents.
